Demystifying the Functionality of Sleeve Anchors with Hex Bolt and Conical Nut

2024-04-11

Sleeve anchors with hex bolts and conical nuts are indispensable components in construction, providing a reliable method for securely fastening objects to concrete, brick, or block surfaces. Despite their simplicity in design, these anchors employ an ingenious mechanism to create a strong and durable connection. In this article, we'll delve into the inner workings of sleeve anchors with hex bolts and conical nuts to understand how they operate and why they are favored in various applications.

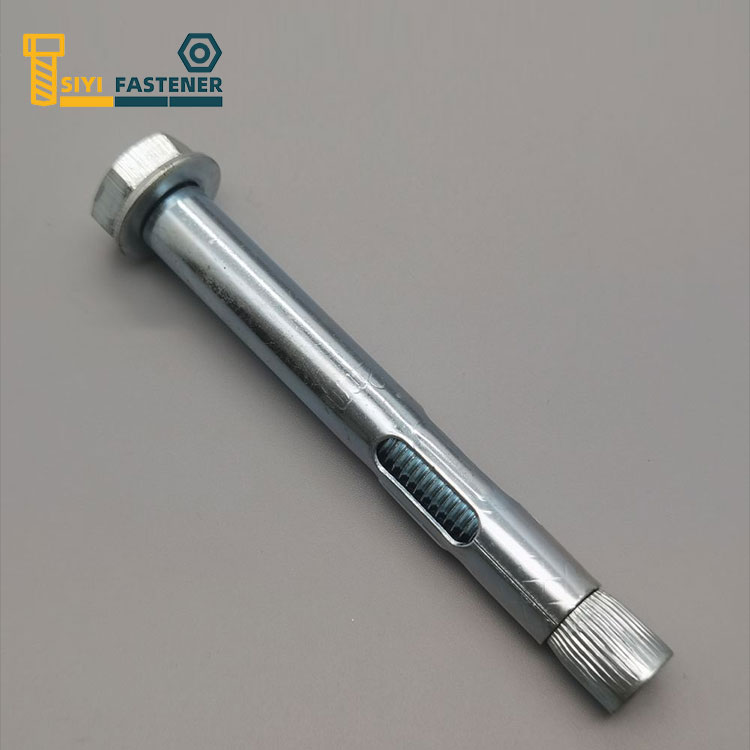

Anatomy of a Sleeve Anchor

Before we explore how sleeve anchors with hex bolts and conical nuts work, let's examine their components:

1. Hex Bolt: The hex bolt serves as the anchor's threaded shaft, providing the means for securing the load to the base material.

2. Sleeve: The sleeve is a hollow cylindrical tube that surrounds the hex bolt. It typically features a split along its length, allowing for expansion when the anchor is installed.

3. Conical Nut: The conical nut is threaded onto the end of the hex bolt. As the nut is tightened, it drives the bolt further into the sleeve, causing the sleeve to expand and create a tight fit within the pre-drilled hole.

The Installation Process

1. Drilling: The first step in installing a sleeve anchor is to drill a hole into the base material using a hammer drill and a masonry bit of appropriate size. The diameter of the hole should match the diameter of the sleeve anchor.

2. Insertion: Once the hole is drilled, the sleeve anchor is inserted into the hole with the threaded end facing outward.

3. Tightening: The conical nut is then threaded onto the exposed end of the hex bolt. As the nut is tightened using a wrench or socket, it pulls the bolt further into the sleeve, causing the split sleeve to expand outward and wedge against the walls of the hole.

4. Expansion: As the sleeve expands, it creates friction against the surrounding base material, forming a secure and stable connection. The hex bolt remains stationary, holding the load in place.

Key Principles at Work

1. Expansion: The expansion of the sleeve anchor is achieved through the wedging action of the split sleeve. As the conical nut is tightened, it exerts force on the bolt, pushing it deeper into the sleeve and causing the sleeve to expand radially.

2. Friction Grip: The expanded sleeve creates friction against the walls of the pre-drilled hole, anchoring the sleeve securely in place. This friction grip prevents the anchor from loosening or pulling out under load.

3. Load Distribution: By distributing the load over a larger area of the base material, sleeve anchors with hex bolts and conical nuts provide enhanced stability and load-bearing capacity compared to other anchoring methods.

Conclusion

Sleeve anchors with hex bolts and conical nuts operate on the simple yet effective principles of expansion and friction grip. Through the coordinated action of the bolt, sleeve, and nut, these anchors create a robust and reliable connection, making them ideal for a wide range of construction and industrial applications. Whether you're securing structural elements, machinery, or fixtures, sleeve anchors with hex bolts and conical nuts offer a dependable solution for fastening objects to masonry surfaces with confidence and peace of mind.
