Understanding DC MCCBs for PV Systems: A Comprehensive Guide

As the world shifts towards renewable energy, solar power systems are becoming more prevalent. One crucial component of these systems is the DC MCCB (Molded Case Circuit Breaker) for PV, which plays a vital role in ensuring safety and reliability. In this blog, we will explore what DC MCCBs are, their importance in photovoltaic (PV) systems, and how they differ from standard circuit breakers.

1. What is a DC MCCB?

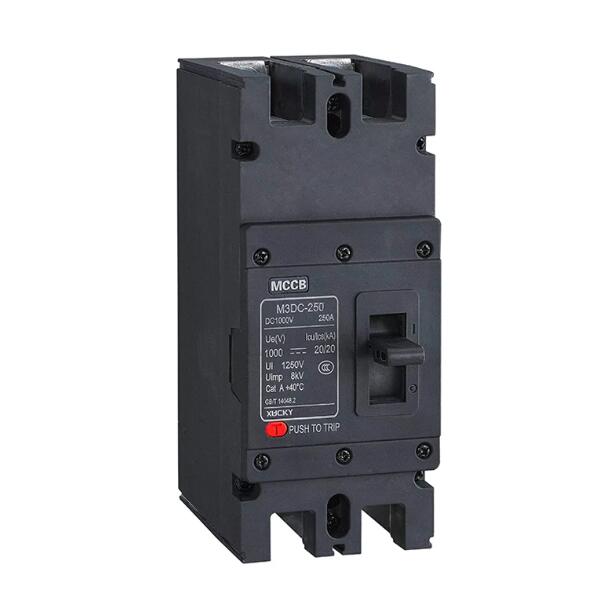

A DC MCCB (Molded Case Circuit Breaker) is a type of electrical protection device designed specifically to handle direct current (DC) circuits. Unlike AC MCCBs, which are commonly used in homes and businesses, DC MCCBs are built to protect circuits in applications that utilize direct current, such as photovoltaic (PV) systems. They safeguard electrical circuits from overcurrent, short circuits, and other potential hazards.

The "molded case" refers to the durable housing that encases the breaker, which is designed to isolate and contain electrical arcs when the breaker is tripped. This helps prevent damage to the system and ensures user safety.

2. Importance of DC MCCBs in PV Systems

In PV systems, which are used to convert sunlight into electrical energy, DC MCCBs serve several important functions:

- Protection from Overcurrent: PV systems can experience fluctuations in current due to changes in sunlight intensity. The DC MCCB monitors the flow of current and trips if the current exceeds safe levels, preventing damage to the solar panels and other components.

- Prevention of Short Circuits: A short circuit in a PV system can cause serious damage, including potential fires. The DC MCCB detects short circuits and immediately interrupts the current flow, minimizing the risk of accidents.

- Voltage Handling: PV systems generate high DC voltage, especially in large installations. Standard AC circuit breakers are not designed to handle such voltages. DC MCCBs are engineered to manage these higher voltages effectively, ensuring safe operation.

- Isolation for Maintenance: DC MCCBs also allow for manual disconnection of PV circuits, providing a way to safely isolate parts of the system for maintenance or repair.

3. How Does a DC MCCB Differ from an AC MCCB?

The key difference between DC and AC MCCBs lies in their construction and design, tailored to the nature of the current they handle:

- Arc Suppression: DC arcs are more difficult to extinguish than AC arcs because DC does not pass through zero voltage like AC does. DC MCCBs use specialized mechanisms to break the circuit and extinguish arcs more effectively.

- Pole Design: DC MCCBs often have more poles than AC MCCBs, allowing them to manage the higher voltages found in PV systems. This is especially important in large installations, where multiple strings of solar panels are connected in series.

- Voltage Ratings: DC MCCBs are designed for higher voltage ratings suitable for PV systems, whereas AC MCCBs are typically used in lower-voltage environments like residential or commercial electrical systems.

4. Types of DC MCCBs for PV Applications

There are several types of DC MCCBs available, each suited to different applications within a PV system:

- Standard DC MCCBs: These are used to protect individual solar panel arrays from overcurrent and short circuits. They are commonly found in smaller residential solar setups.

- High-Voltage DC MCCBs: For larger commercial or industrial solar installations, high-voltage DC MCCBs are necessary to manage the increased power output and voltage levels.

- Bi-Directional MCCBs: In PV systems that include energy storage (such as batteries), bi-directional DC MCCBs are used to manage the flow of current in both directions, allowing for safe charging and discharging of batteries.

5. Choosing the Right DC MCCB for Your PV System

When selecting a DC MCCB for your PV system, several factors should be considered:

- Voltage Rating: Ensure the MCCB is rated for the voltage of your solar array. Higher voltage systems will require breakers with higher voltage ratings.

- Current Rating: The breaker should be rated for the expected current of the system, with some margin to account for potential surges.

- Number of Poles: Depending on the complexity and size of the PV system, you may need an MCCB with multiple poles to protect different sections of the system.

- Environmental Conditions: For outdoor installations, ensure the DC MCCB is rated for outdoor use and is resistant to moisture, dust, and extreme temperatures.

Conclusion

DC MCCBs are critical components in photovoltaic systems, ensuring safety and reliability by protecting circuits from overcurrent, short circuits, and other potential hazards. Whether you are installing a small residential solar array or a large commercial solar farm, selecting the right DC MCCB will help ensure your system operates efficiently and safely. Understanding the unique features and requirements of DC MCCBs will guide you in making the best choice for your PV system.
